Our range of premium PEX-AL-PEX pipes are manufactured to ISO9001 European standards ensuring outstanding performance & reliability in all types of warm water underfloor heating systems.

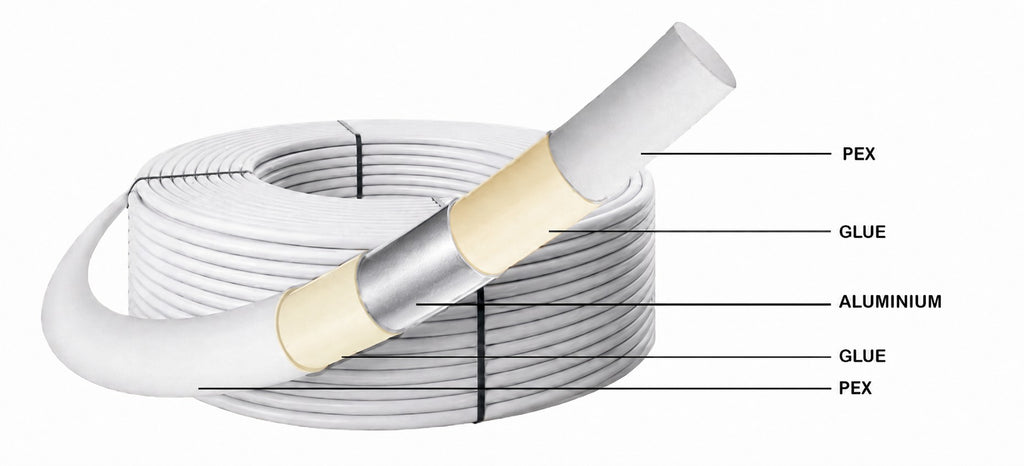

The aluminium core provides strength and importantly acts as an oxygen barrier to stop the ingress of oxygen into the system causing premature wear (corrosion) to the manifold. The aluminium layer also makes the pipe form-stable, making it very easy to work with by eliminating spring back for easier installation.

The difference between Pex pipe and EVOH Pert pipe is that PAP can be used in potable water applications and is form-stable.


TECHNICAL
Coefficient of thermal conduction 0.45W/(m.K)
Coefficient of thermal conduction for insulation 0.037W/(m.K) Expansion Coefficient 2.5x10-5（m.k)
Bend Radius >=5D
Working temperature 一40- +95°C
Working Pressure 1.25MPA
Oxygen Diffusion 0mg/1.d
Burst Pressure >=4.0-7 MPA
Tensile Resistance >2100-2650N
